AJ 105″ Laser 230Z – Reflex

4,700

טיסן 35% למנועי 100-120 סמ”ק

  • תכנון של Andrew Jesky
  • קל, מדוייק ואידאלי לתחרויות IMAC
  • חד ואגרסיבי בטיסות 3D
  • אבזור עשיר וסכמת צבעים יפהפייה
  • כולל תיקי בד מרופדים ואיכותיים

במלאי

קטגוריה: , מקט: 105" Laser 230Z - Reflex

תיאור

Specifications:

  • Wing Span – 105″
  • Length – 102″
  • AUW (dry) – 26-28 lbs.
  • Gas Power – 100cc to 120cc
  • Radio – 8 channel with 8 high torque servos (400 oz./in minimum) & 1 throttle servo
  • IMAC Legal!

What’s in the box:

  • Pre-hinged, glued and sealed ailerons & elevators

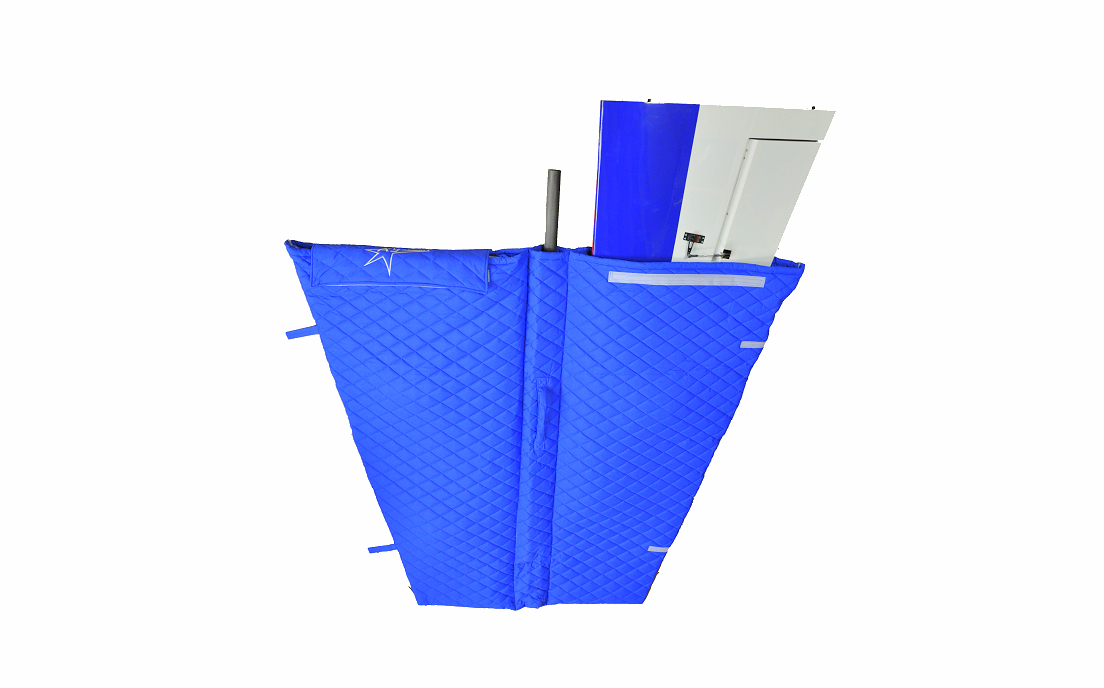

  • High-quality embroidered cloth wing bags & stab bags
  • 5″ carbon fiber spinner pre-cut for two blade prop
  • Carbon fiber main landing gear
  • Carbon fiber main wing tube
  • Dual carbon fiber stab tubes
  • Removable horizontal stabs & rudder
  • G10 fiberglass control horns
  • Aluminum reinforced landing gear mount
  • Aluminum reinforced firewall
  • Aluminum standoffs for gas engines
  • Full-length canister tunnel
  • Canister muffler mounts
  • Heavy duty foam wheels with aluminum hubs
  • Heavy duty steel axles
  • Thick heavy duty pre-drilled wheel pants
  • Pre-drilled & rubber lined landing gear cuffs
  • Firewall drilling templates for common engines
  • Pre-run rudder pull-pull wires (turnbuckle also included for push-pull option)
  • High quality ball links & turnbuckles for all connections
  • Extra hardware bag for spares
  • Velcro for fuel tank or battery restraint

    AJ flies this airframe with the following equipment:
    Desert Aircraft 120cc twin gas engine
    Dual KS3086 Canister Mufflers with 90mm Drop Header
    Falcon 28×10 propeller
    Futaba S-9177 Servos
    SpotOnRC V2 1.75″ Servo Arms x (6)
    SpotOnRC V2 3.5″ Double Servo Arm x (2)

Also needed to complete:

(2) x 24″ extensions for outer ailerons
(2) x 6″ extensions for inner aileron
(4) x 6″ extensions from receiver to each wing
(2) x 48″ extensions for elevators
(2) x 36″ extensions for push-pull rudder. None needed for pull-pull.
(2) x 24″ extension for throttle servo and ignition
(6) x 1 3/4″ servo arms for elevators & ailerons
(2) x 3 1/2″ servo arm for rudder pull-pull or (2) x 1 3/4″ arm for push-pull
(1) x 34oz (1000ml) gas tank
(1) x 105″ Laser Baffle Set
