Specifications:
Wingspan: 120.5 inches
Length: 94 inches (including EF 4 inch spinner)
Wing Area: 1800 sq. in.
Weight: 24 – 26 lbs.
Gas Power System:
50-70cc gas engine
Desert Aircraft DA 70cc with with 2-into-1 header and MTW 110 rear exhaust canister recommended
FlowMaster 24 or 34 oz. fuel tank
EF blue fuel line
EF fuel dot
Electric Power System:
Xpwr 60cc Brushless Outrunner motor
Blazing Star XXL Standoff Set
Castle Creations HV160 electronic speed control
12S 5000+ mAh batteries
24×10 or 24×12 Xoar beechwood electric prop or 26×8 Falcon carbon fiber prop
Spinner:
EF 4 inch spinner, carbon fiber for gas or electric, or EF Elite for electric
Radio Requirements:
Modern 7 channel computer radio
Servos:
Qty. 7 high torque metal gear servos for control surfaces (MKS HV1220, HV777A+, HBL599 or HBL 380)
Qty. 1 high speed servo for throttle (MKS 1250)
Qty. 1 high torque metal gear mini servo for tailwheel steering (MKS 9767, Hitec 5245 or 7245)
Servo Arms:
Qty. 5 Extreme Flight Servo Arms – 2" single tapped for M3 (aileron, flaps, rudder)
Qty. 2 Extreme Flight Servo Arms – 2" single tapped for M3 (elevators)
Qty. 1 Extreme Flight Lightweight Servo Arm – 1.25" single for tailwheel steering
Servo Extensions:
Qty. 2 EF MPX 2-wire plug for quick aileron and flap connection
Qty. 2 EF 6 inch 20 awg for Flaps
Qty. 2 EF 24 inch 20 awg for Ailerons
Qty. 1 EF 24 inch 20 awg for Throttle or ESC
Qty. 3 EF 36 inch 20 awg for Elevators, tailwheel servo
Qty. 1 EF 48 inch 20 awg for Rudder
Xessories:
EF Socket Head Servo Screws
EF Anodized Washer set
EF Servo Extension Locks
EF 2 meter Velcro strap

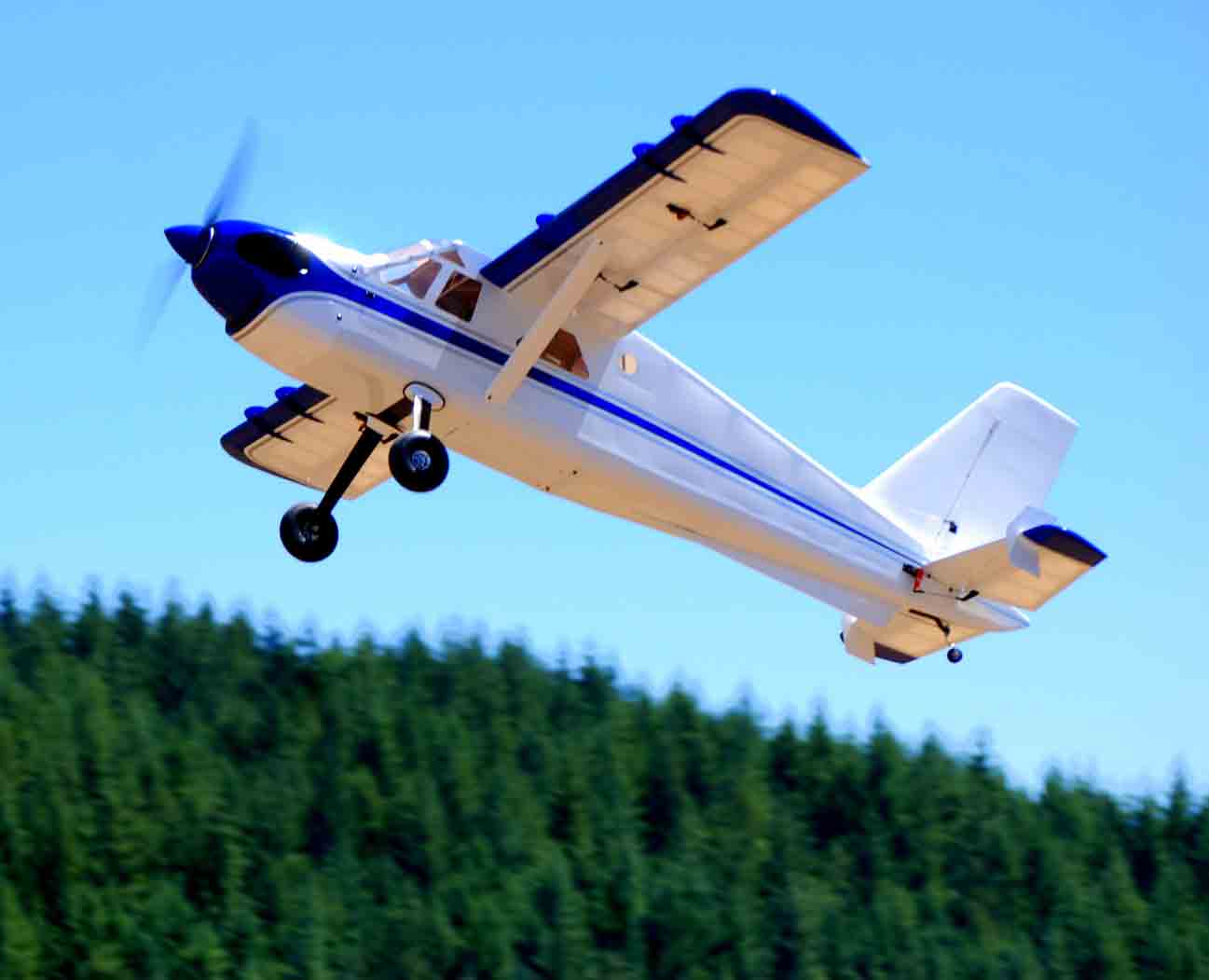

Legacy Aviation 120" Turbo Bushmaster
Extreme Flight and Legacy Aviation are excited to announce the release of the long awaited 120" Bushmaster! The brainchild of Cody Wojcik, this design builds on the legacy of the original 84" and 65" versions which have become must have additions to the hangars of RC enthusiasts around the globe. Renowned for its ability to be both a "relaxing but never boring" sport model as well as a fully capable bush style aerobat, the Bushmaster design has won legions of fans who simply want a great flying model with a unique appearance and style. Now Legacy Aviation delivers the next step in this series aimed at the giant scale enthusiast, the 120" Bushmaster! Designed around the Xpwr 60 brushless outrunner and the DA-70 twin cylinder gas engine, the Bushmaster delivers about as much fun as can be had with an RC aircraft with either choice of power plant. We've recently been flying our DA-70 powered version with a 2 into 1 header and single canister muffler setup which delivers quiet consistent power and long flight times. Of course the Xpwr 60 version with a 12S 5000+ mah battery setup provides excellent power and is clean and quiet. Whichever power system you choose, you are certain to have a most fulfilling flying experience!
The Bushmaster features a lightweight built up balsa and plywood airframe with strategically placed composite reinforcements to add strength and rigidity. It features a carbon fiber main gear and tailwheel assembly along with carbon fiber wing, stab and rudder mounting tubes and two gorgeous Ultracote (Oracover) color schemes. An expertly painted fiberglass cowl is standard fare along with a pro level hardware package. An optional float kit is also available for water based operations.
