Savox SC-1256TG

315

SC-1256TG
Savox – SC-1256TG Digital Coreless Motor Servo, Titanium Gear

במלאי

קטגוריה: , , מקט: Savox SC-1256TG

תיאור

Servo Technology: Digital Low Voltage
Input Voltage (V): 4.8V – 6.0V
Servo Type / Size: Standard
Motor Type: Coreless Motor
Gear Material: Titanium Gears
Ball Beared: Ball Beared
Servo Case: Aluminium – Composite
Servo Power – Torque Kg/cm: 16 – 25 Kg/cm
Servo Speed 60°/sec: 0.10 – 0.15 Sec/60°

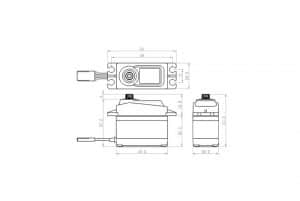

Length (mm): 40.3 mm
Width (mm): 20.0 mm
Height (mm): 37.2 mm
Weight (g): 52.4 g
Speed 60°/Sec @ 6.0V: 0.15 Sec/60°
Torque kg/cm @ 6.0V: 20.0 Kg/cm
Connector type: JR
Spline size: 25T Spline

Features:

– Leading edge digital servo technology
– High efficiency Coreless motor
– Accurate and fast response
– Super high resolution
– Aluminium center case for improved motor cooling and total strength
– Ball beared
– Precision Titanium gears

Technical specifications:

Servo Technology: Digital Low Voltage
Input Voltage (V): 4.8V – 6.0V
Servo Type / Size: Standard
Motor Type: Coreless Motor
Gear Material: Titanium Gears
Ball Beared: Ball Beared
Servo Case: Aluminium – Composite
Speed 60°/Sec @ 6.0V: 0.15 Sec/60°
Torque kg/cm @ 6.0V: 20.0 Kg/cm
Length (mm): 40.3 mm
Width (mm): 20.0 mm
Height (mm): 37.2 mm
Weight (g): 52.5 g
Connector type: JR
Spline size: 25T Spline
