1/9 Scale
Wingspan: 882mm
Length: 1613mm
Weight: 2350g : CG (Center of Gravity) Molded Into Fuselage (130mm aft of canard root)
Power System: 6S 3658-1920Kv Inrunner Motor (included)
Electronic Speed Control: 100A with 5A UBEC (included)
Propeller / EDF: 80mm 9-Blade EDF (included)
Servos: 9g hybrid digital standard with 200mm lead : left aileron, right aileron
9g hybrid digital standard with 300mm lead : nose gear steering
9g metal gear digital standard with 100mm lead : left canard, right canard
9g hybrid digital standard with 1050mm lead : rudder
Landing Gear: Electronic retractable aluminum trailing link (included)
Required Battery: 6S 22.2V 4000-6000mAh LiPo with EC5 Connector (required)
Required Radio: 6+ Channel (required)
Ailerons: Yes
Elevator: Yes
Rudder: Yes
Canards: Yes
Lights: Yes
Hinge Type: Nylon Reinforced
Material: EPO Foam
Skill Level: Intermediate
Build Time: 1 Hour
Recommended Environment: Outdoors

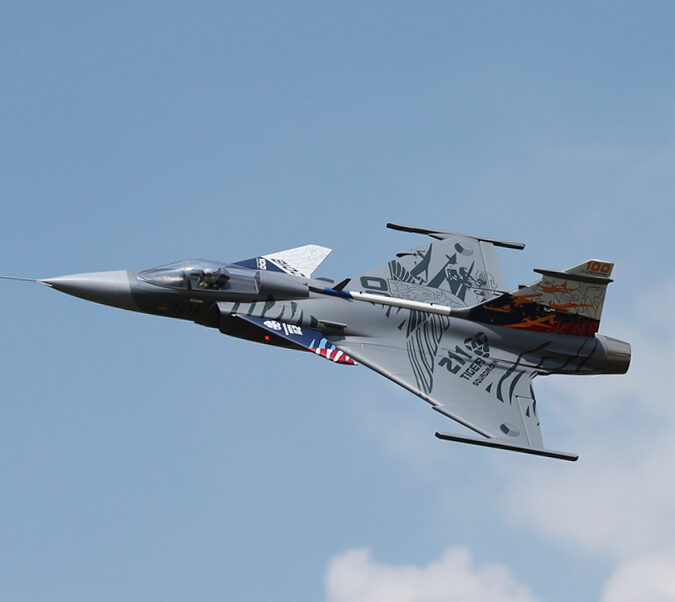

The JAS 39 Gripen’s unique delta wing and canard configuration endows it with excellent agility, most notably a tighter turning radius than the American F-16! Flown by more than a dozen NATO countries, the Gripen is a Mach 2 multi-role fighter whose 25 year service history continues onward with distinction.
Freewing has raised the bar again for RC foam electric delta winged jets with the JAS 39 Gripen. This jet is precisely modeled for scale fidelity and practical RC performance, and assembles in minutes including pre-installed electronics and LED lighting. Powered by our popular 80mm 9-blade Inrunner EDF and a 100A ESC, the Freewing Gripen is designed for power! At ~1/9 scale and 1613mm/63” in length, the Freewing Gripen is longer than its predecessor, the Freewing Typhoon/Eurofighter. Referencing the full size Gripen’s short take-off capabilities, the Freewing Gripen is optimized for short take-offs and surviving unkempt landing strips.
Recommended for intermediate to advanced skill level pilots, the Freewing Gripen offers the power, size and speed of a 90mm super scale jet, in a lighter, faster, and more economical 80mm EDF Series package. Full-functioning canards enable high agility, and full-coverage gear doors improve the airframe’s overall aerodynamics.
Features:
Full Function canard operation
9-blade EDF with 3658-1920Kv Inrunner brushless motor for incredible efficiency and performance surpassing 170kph/105mph top speed
Full-coverage landing gear doors for optimized aerodynamics
Durable metal landing gear for operation on grass and gravel runways
Preinstalled ball linkage and decals
63” total length
12” long removable magnetic nose cone for easy transportation
True-To-Life livery commemorating the 100th Anniversary of Allied and NATO service of the Czech Air Force
Includes:
Freewing JAS 39 Gripen 80mm EDF Jet – PNP
Brushless motor, servos and ESC preinstalled
Instruction manual
Requires:
7 Channel radio – minimum 7 channel radio
7 Channel receiver – minimum 7 channel receiver
6 Cell 22.2V 4000-6000 mAh LiPo battery with EC5 connector
6 Cell compatible battery charger
