Savox – SC-0252MG Digital DC Motor Servo, Metal Gear

קיים במלאי

קטגוריות: , , מק"ט: Savox SH-0254

תיאור

Servo Technology: Digital Low Voltage
Input Voltage (V): 4.8V – 6.0V
Servo Type / Size: Mini
Motor Type: Brushed DC Motor
Gear Material: Composite Gears
Ball Beared: Ball Beared
Servo Case: Aluminium – Composite
Servo Power – Torque Kg/cm: 1 – 5 Kg/cm
Servo Speed 60°/sec: 0.10 – 0.15 Sec/60°

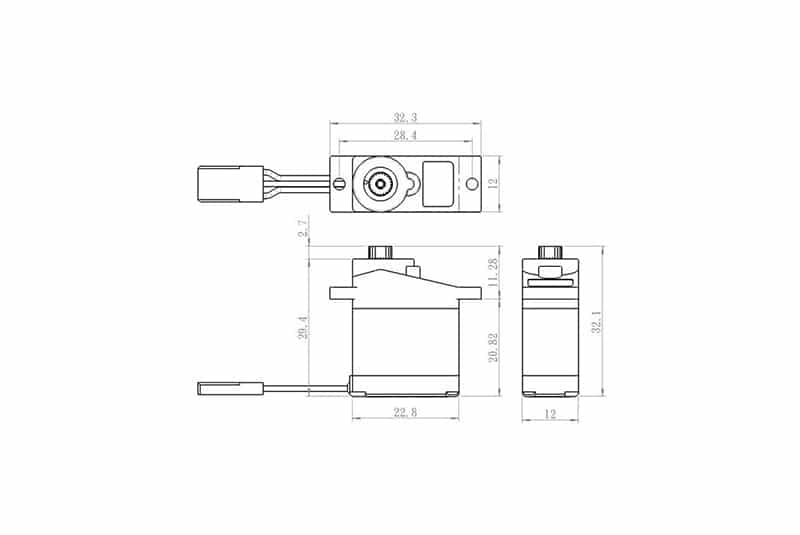

Length (mm): 22.8 mm
Width (mm): 12.0 mm
Height (mm): 29.4 mm
Weight (g): 15.8 g
Speed 60°/Sec @ 6.0V: 0.13 Sec/60°
Torque kg/cm @ 6.0V: 3.9 Kg/cm
Connector type: JR
Spline size: 21T Spline

Features:

– Leading edge digital servo technology
– Strong 3-Pole Brushed motor
– Accurate and fast response
– Fine resolution
– Aluminium center case for improved motor cooling and total strength
– Ball beared
– Precision Metal gears

Technical specifications:

Servo Technology: Digital Low Voltage
Input Voltage (V): 4.8V – 6.0V
Servo Type / Size: Mini
Motor Type: Brushed 3-Pole Motor
Gear Material: Metal gears
Ball Beared: Ball Beared
Servo Case: Aluminium – Composite
Speed 60°/Sec @ 6.0V: 0.13 Sec/60°
Torque kg/cm @ 6.0V: 3.9 Kg/cm
Length (mm): 22.8 mm
Width (mm): 12.0 mm
Height (mm): 29.4 mm
Weight (g): 15.8 g
Connector type: JR
Spline size: 21T Spline
